Ringlock Standards

Construct robust, heavy-duty modular scaffolding with Dynaton Ringlock Standards (Verticals). Engineered and tested to meet Australian scaffolding standards (AS/NZS 1576.1 & AS/NZS 1576.3), our Ringlock standards form the core load-bearing vertical backbone of multi-directional modular scaffolding systems across commercial, industrial, civil, and mining projects.

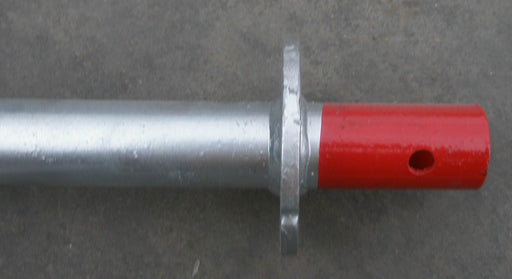

Manufactured from premium high-strength 48.3mm OD x 3.2mm wall structural steel tube and finished with heavy hot-dipped galvanising to AS/NZS 4680, these standards offer outstanding corrosion resistance and extended working life in harsh Australian coastal and industrial environments. Each standard is fitted with an integrated heavy-duty spigot for secure vertical stacking and welded 8-hole rosettes spaced at precise 500mm vertical increments.

Key Features

• Engineered Multi-Directional Flexibility: 8-hole rosette rings allow up to 4 horizontal ledgers and 4 diagonal braces to be locked into a single node point at variable angles with simple hammer-wedge action.
• Certified Australian Standard Compliance: Fully engineered, tested, and certified in accordance with AS/NZS 1576.1 and AS/NZS 1576.3 for high-load access and heavy shoring applications.
• Hot-Dipped Galvanised Finish: Deep galvanised protection ensures long-term resistance to rust, saltwater spray, and concrete slurry.
• Integrated Heavy-Duty Spigot: Built-in top spigot pin enables fast, rigid vertical alignment and safe inter-locking when extending tower heights.
• Standard 500mm Rosette Spacing: Standardised node spacing supports fast bay layout, uniform lift heights, and seamless integration with standard scaffold planks, stairs, and hop-up brackets.

Size Range & Specifications

• 0.5m Standard (1 Rosette): Length: 500mm | Approx. Weight: 3.3kg (SKU: RSD0500)
• 1.0m Standard (2 Rosettes): Length: 1,000mm | Approx. Weight: 6.1kg (SKU: RSD1000)
• 1.5m Standard (3 Rosettes): Length: 1,500mm | Approx. Weight: 8.8kg (SKU: RSD1500)
• 2.0m Standard (4 Rosettes): Length: 2,000mm | Approx. Weight: 11.6kg (SKU: RSD2000)
• 2.5m Standard (5 Rosettes): Length: 2,500mm | Approx. Weight: 14.3kg (SKU: RSD2500)
• 3.0m Standard (6 Rosettes): Length: 3,000mm | Approx. Weight: 17.5kg (SKU: RSD3000)
• Tube Specification: 48.3mm Outer Diameter x 3.2mm Wall Thickness (High-Strength Structural Steel)
• Finish: Hot-Dipped Galvanised to AS/NZS 4680

Applications & Safety Guidelines

• Primary vertical load-bearing columns for commercial facade access, birdcage scaffolding, heavy shoring, and suspended cantilever systems.
• Industrial shutdowns, power stations, mining structures, infrastructure bridges, and ship repair facilities.
• Safety Notice: Ensure all base standards are installed on level, rated base plates or screw jacks. Always lock wedge pins firmly with a scaffolder's hammer before loading platforms.

Need complete scaffold package quotes or engineering load data?
Dynaton provides wholesale trade pricing, hire solutions, and fast container-direct deliveries. Contact our Brisbane or Sydney branch for specialist technical assistance.
